Kovar Stamping Processing
High-Precision Forming Solutions
Specialized precision stamping, blanking, bending, and deep drawing for Kovar alloy components. Our advanced stamping capabilities deliver tight-tolerance Kovar parts with exceptional dimensional consistency for critical sealing and electronic applications.
√ ±0.01mm Tolerance √ 0.1-5.0mm Material Thickness √ ISO 9001 Certified
ASTM F15 Kovar Alloy

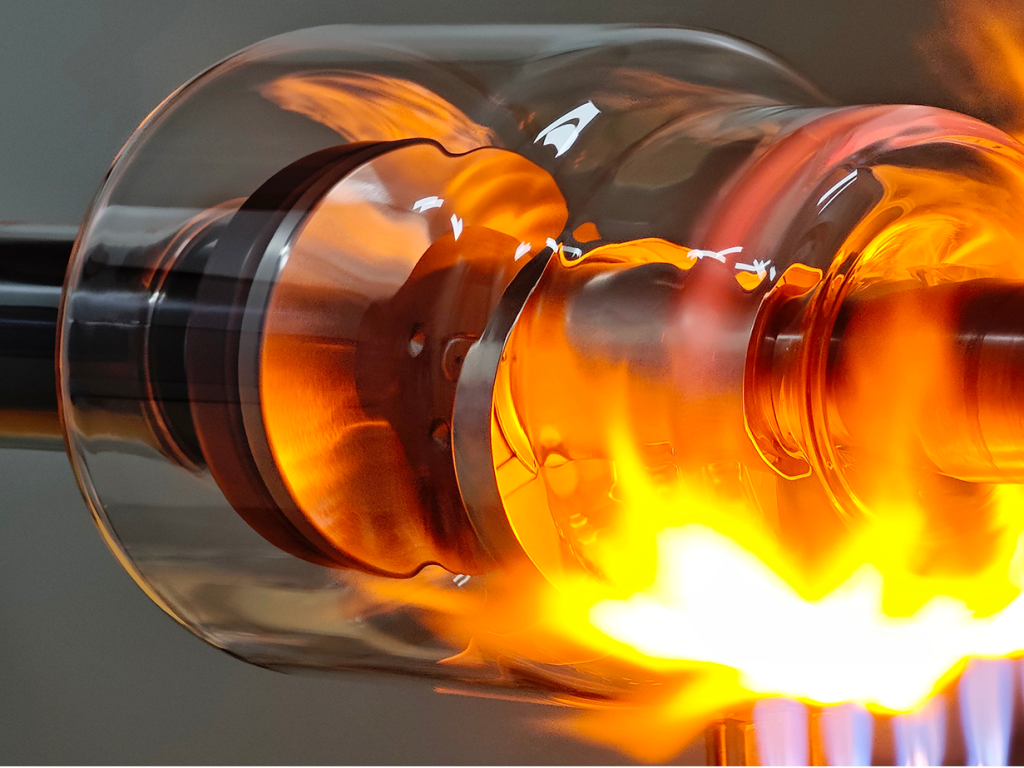

Specialized stamping for Fe-Ni-Co alloy with matched CTE for glass-to-metal sealing applications
Technical Overview
Kovar Stamping: Precision Forming for Critical Applications
Kovar (ASTM F15 / UNS K94610) is a nickel-iron-cobalt alloy renowned for its matched thermal expansion coefficient with borosilicate glass and ceramics. Our specialized stamping processes leverage Kovar’s unique material properties to produce high-integrity components for hermetic sealing, aerospace, medical, and electronic applications.
Unlike standard metal stamping, Kovar stamping requires specialized tooling, precise process control, and material handling expertise to maintain the alloy’s critical thermal properties while achieving tight dimensional tolerances.
Key Kovar Stamping Advantages
- Maintains critical thermal expansion properties post-stamping
- Enables complex geometries with minimal material stress
- Produces consistent, repeatable parts at scale
Thermal Stability
Specialized stamping parameters preserve Kovar’s thermal expansion characteristics critical for glass sealing.
Tight Tolerance Control
Achieve dimensional tolerances down to ±0.01mm on critical features, essential for hermetic sealing applications.
Material Efficiency
Optimized nesting and stamping processes minimize material waste for cost-effective production.
Complex Forming
Deep drawing, progressive stamping, and multi-stage forming for intricate Kovar component geometries.
Kovar Stamping Capabilities
We offer comprehensive stamping solutions for Kovar alloy, from prototyping to high-volume production, with specialized capabilities tailored to this unique material.
Precision Blanking & Piercing
High-accuracy cutting of Kovar sheet and strip material with clean edges and minimal burr formation, critical for sealing surfaces.
- Material thickness: 0.1mm to 5.0mm
- Part size range: 0.5mm to 300mm
- Burr height < 0.01mm on critical surfaces
Bending & Forming
Specialized bending processes for Kovar alloy to create complex angles and forms while maintaining material integrity and flatness.
- Inside radius as small as material thickness
- Angle tolerance: ±0.1° on critical bends
- Multi-axis forming capabilities
Deep Drawing
Production of seamless Kovar shells and enclosures with deep draw ratios up to 4:1 for vacuum and hermetic sealing applications.
- Draw depth up to 150mm
- Wall thickness variation < 5%
- Bottom thickness maintenance
Production Capacity
10+
Prototype Parts Minimum
100K+
Monthly Production Capacity
48hrs
Prototype Turnaround Time
Kovar Stamping Process Workflow
Our standardized yet flexible stamping process ensures consistent quality and on-time delivery for all Kovar components, from initial design to finished parts.
Process Workflow
Our Kovar stamping capabilities scale from prototype development to high-volume production, with the flexibility to meet your exact requirements
Design & Engineering
Review customer specifications and create optimized stamping tooling designs specifically for Kovar material characteristics, including springback compensation and material flow analysis.
• DFMA (Design for Manufacturability) analysis
• Tooling design with Kovar-specific parameters
• Prototype planning and cost optimization
Tooling Fabrication
Manufacture precision stamping dies and tooling from high-grade materials to withstand Kovar's unique forming characteristics and ensure long production life.
• High-hardness tool steel construction
• Precision grinding and finishing
• Tryout and validation with Kovar material
Material Preparation
Source certified Kovar alloy (ASTM F15) and prepare material with precision slitting, leveling, and cleaning to ensure optimal stamping performance.
• Full material traceability documentation
• Precision leveling for flatness control
• Surface cleaning for contamination control
Precision Stamping
Execute stamping operations on advanced CNC presses with precise control of speed, pressure, and feed rates optimized for Kovar alloy characteristics.
• Real-time process monitoring
• In-process quality checks
• Consistent material flow control
Secondary Operations
Perform value-added post-stamping processes to complete Kovar components according to customer specifications.
• Precision deburring and edge finishing
• Heat treatment (stress relief annealing)
• Surface treatment (plating, passivation)
Quality Control & Delivery
Implement comprehensive inspection protocols and documentation to ensure all Kovar stamped parts meet stringent quality requirements before delivery.
• Dimensional inspection (CMM, vision systems)
• Material property verification
• Certification and traceability documentation
Process Workflow
Our Kovar stamping capabilities scale from prototype development to high-volume production, with the flexibility to meet your exact requirements

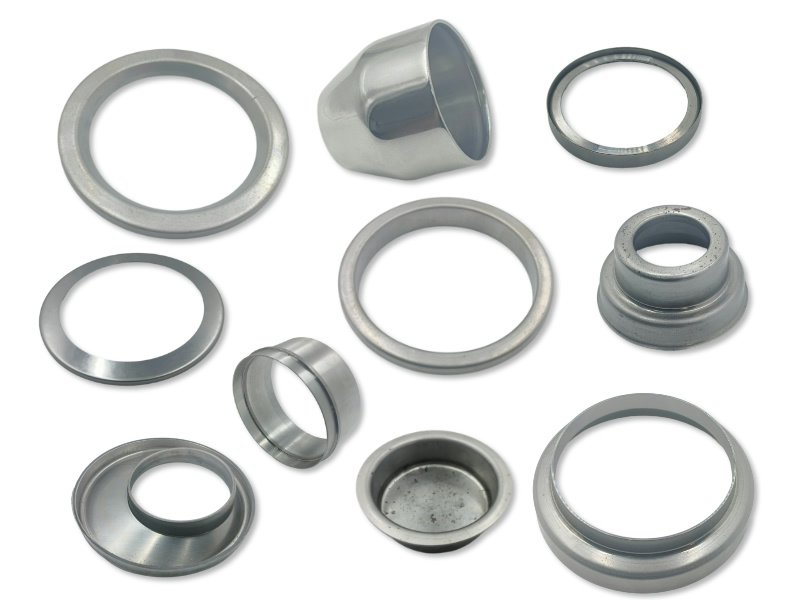

Kovar Stamped Components Applications
Our precision Kovar stamped parts serve critical applications across multiple industries where thermal stability and hermetic sealing are essential.
Aerospace & Defense
Hermetic connectors, sensor housings, and electronic packaging components for aerospace systems requiring extreme environmental resistance.
Medical Devices
CT tube components, implantable device housings, and diagnostic equipment parts requiring biocompatibility and hermetic sealing.
Electronics & Vacuum
Feedthrough components, vacuum tube envelopes, and electronic packaging for high-reliability applications in extreme environments.
Industrial Equipment
Sealing components, sensor parts, and furnace hardware for industrial processing equipment operating at extreme temperatures.
Uncompromising Quality in Kovar Stamping
Quality is embedded in every stage of our Kovar stamping process, from material selection to final inspection. Our quality management system ensures consistent, reliable performance of every stamped component.
ISO 9001:2015 Certified
Our quality management system is certified to international standards, ensuring consistent processes and documentation.
Advanced Inspection Equipment
CMM, optical comparators, vision systems, and hardness testing ensure dimensional accuracy and material integrity.
Full Traceability
Complete material and process traceability documentation for aerospace, medical, and defense applications.
