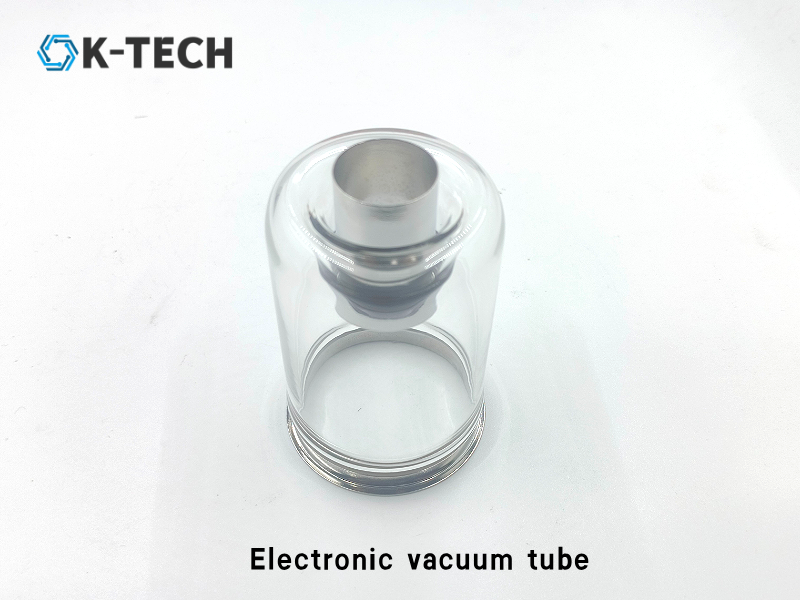

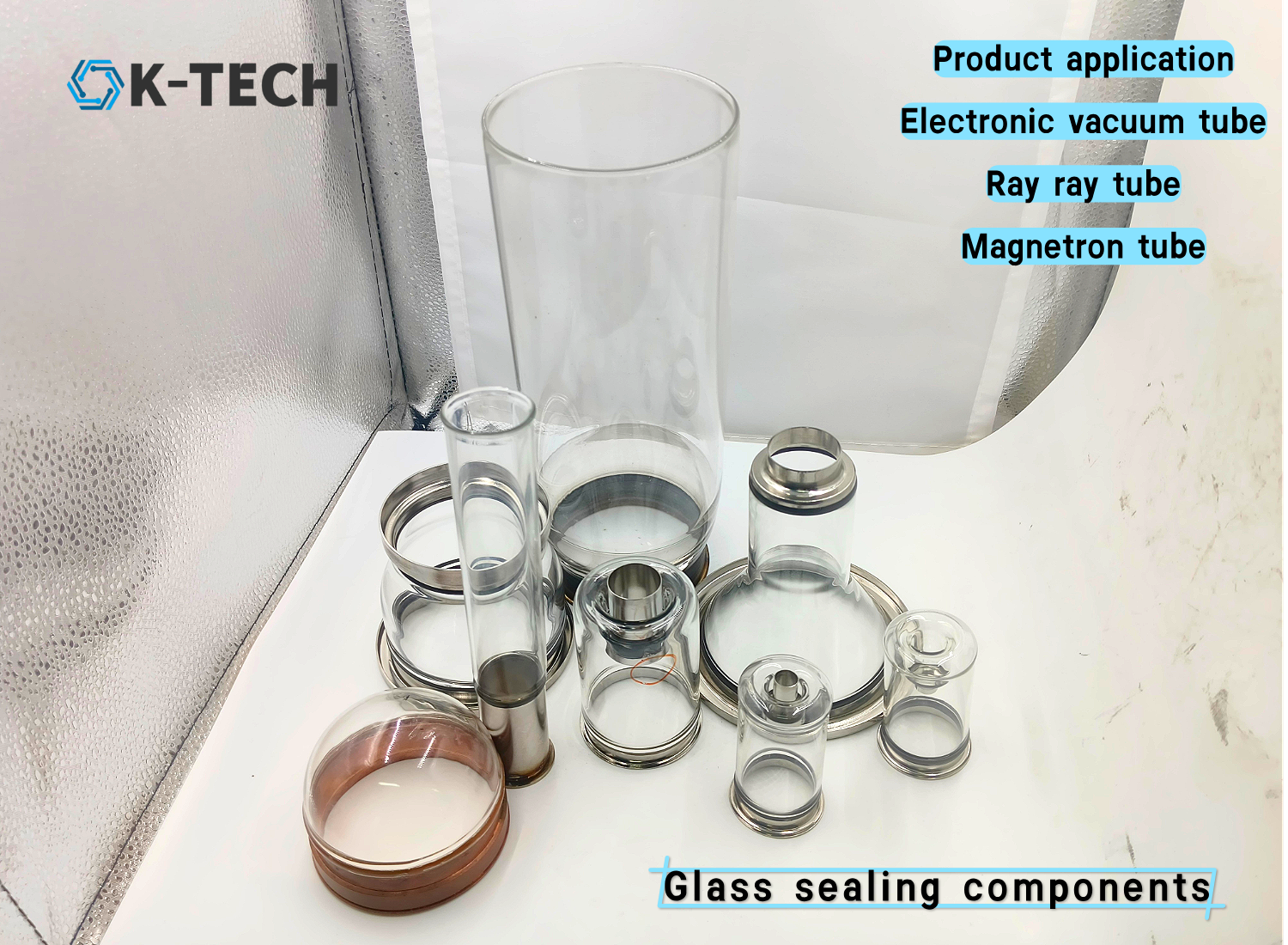

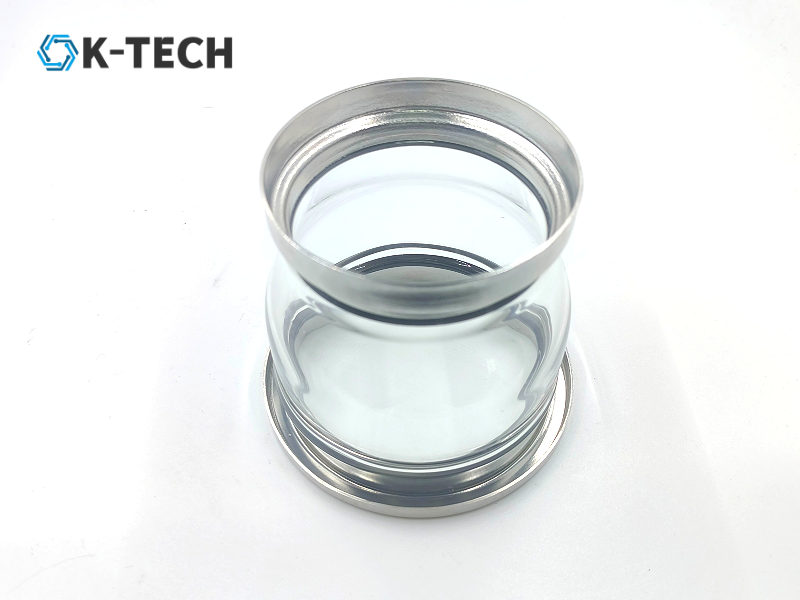

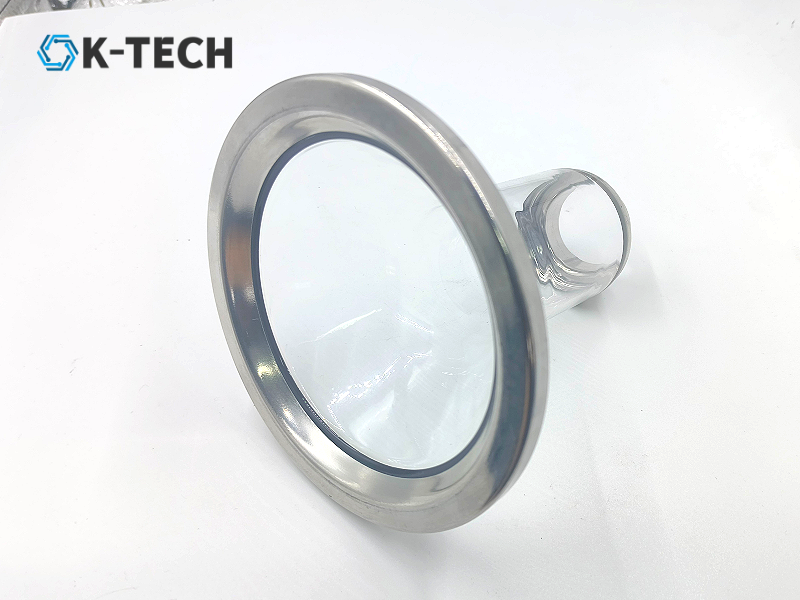

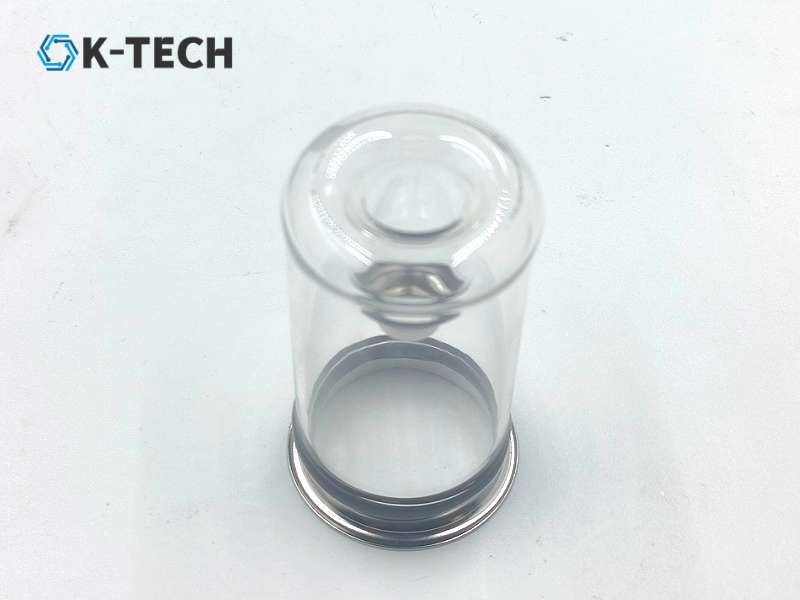

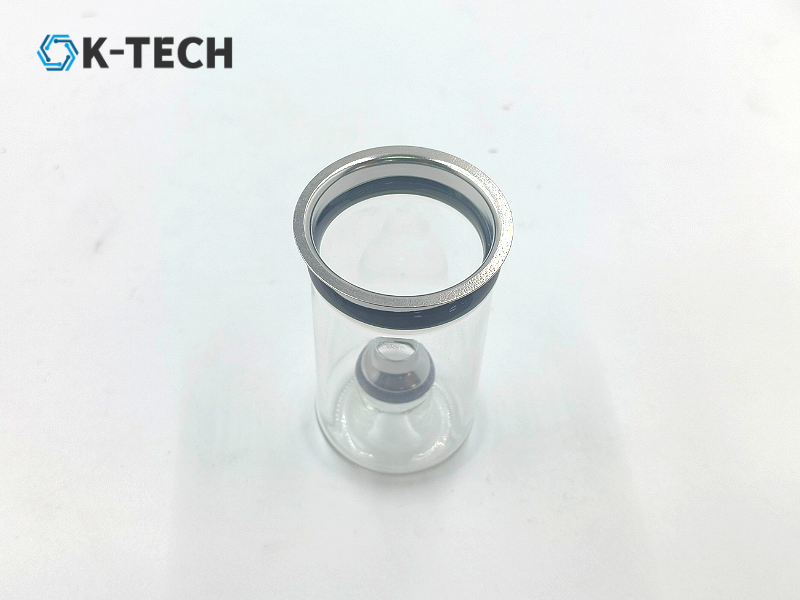

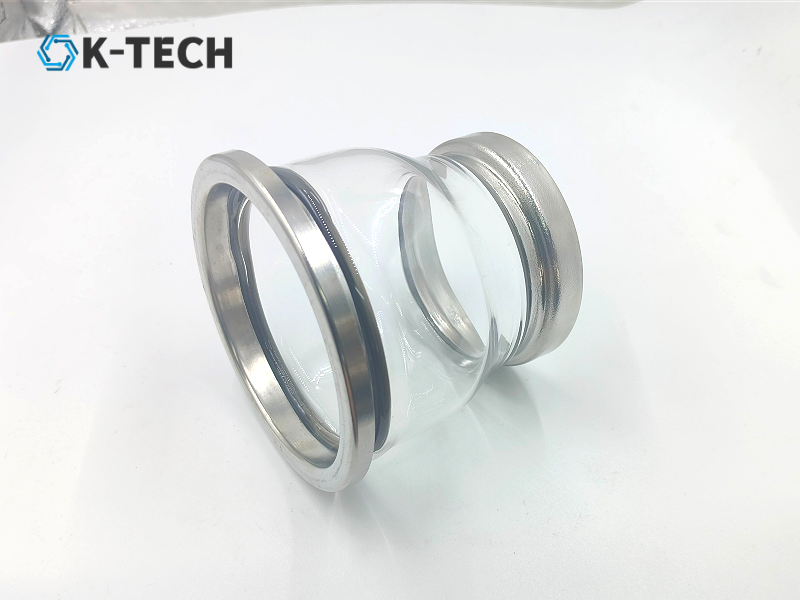

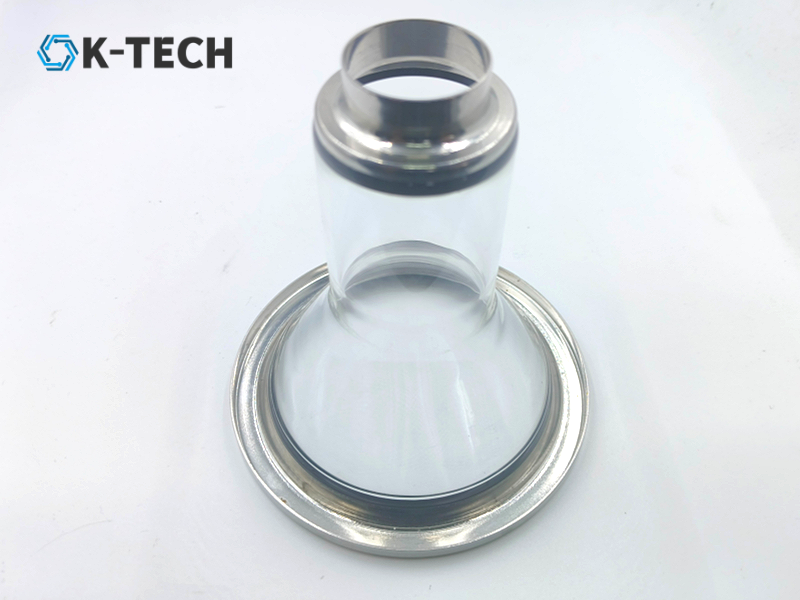

Custom High Precision Glass-Alloy Sealed Ray Tube Assembly

Product Description:

Overview
Our Custom High-Precision Glass-Alloy Sealed Ray Tube Assembly represents the pinnacle of advanced engineering for demanding applications requiring ultra-precise performance in high-energy environments. Combining specialized glass alloys with hermetic sealing technologies, these assemblies deliver unmatched durability, thermal resistance, and vacuum integrity. Tailored to your exact specifications, they are designed for critical systems where precision, reliability, and longevity are non-negotiable.

Key Features

• Bespoke Design Solutions: Fully customizable geometries, dimensions, and sealing configurations to meet unique operational requirements, including tailored electrode positioning, port placements, and beam path alignment.

• Advanced Glass-Alloy Construction: Engineered with proprietary glass-metal hybrid materials, offering exceptional thermal shock resistance, minimal outgassing, and compatibility with ultra-high vacuum (UHV) conditions.

• Hermetic Sealing Excellence: Precision glass-to-metal or glass-to-ceramic seals ensure leak-proof performance (helium leak rate ≤1×10⁻¹¹ mbar·L/s), even under extreme thermal cycling (-50°C to +500°C).

• High-Energy Compatibility: Optimized for X-ray, electron beam, or ionizing radiation applications, with shielding options to minimize electromagnetic interference (EMI) and parasitic currents.

• Nanoscale Precision: Sub-micron tolerances (±0.05mm) and ultra-smooth internal surfaces to maximize beam focus efficiency and minimize particle contamination.

Applications

• Medical Imaging: X-ray tubes for CT scanners, radiotherapy systems, and diagnostic equipment.

• Industrial Non-Destructive Testing (NDT): High-energy beam sources for material inspection, weld analysis, and aerospace component evaluation.

• Scientific Research: Particle accelerators, synchrotron radiation devices, and vacuum chamber instrumentation.

• Semiconductor Manufacturing: Electron beam lithography and ion implantation systems.

Customization Options

• Material Pairings: Kovar, Invar, or stainless steel interfaces for thermal expansion matching.

• Window Configurations: Beryllium, aluminum, or diamond-coated windows for specific radiation transmission.

• Cooling Integration: Air- or water-cooled jackets for high-power applications.

• Certifications: Compliance with ISO 13485 (medical), MIL-STD-810 (aerospace), or IEC 60601 standards.

Quality Assurance
Every assembly undergoes rigorous validation:

• High-voltage arcing tests (up to 200 kV).

• Residual gas analysis (RGA) for vacuum purity.

• Vibration and shock resistance testing (MIL-S-901D).

• Lifetime stress simulations under accelerated aging conditions.

Packaging & Delivery
ESD-safe, climate-controlled packaging with ISO-compliant cushioning. Expedited global shipping with hazardous material certification (if applicable).

Transform Your High-Energy Systems—Leverage our cutting-edge ray tube assemblies to achieve breakthrough performance. Contact us for a consultation and custom quotation!
